Description:

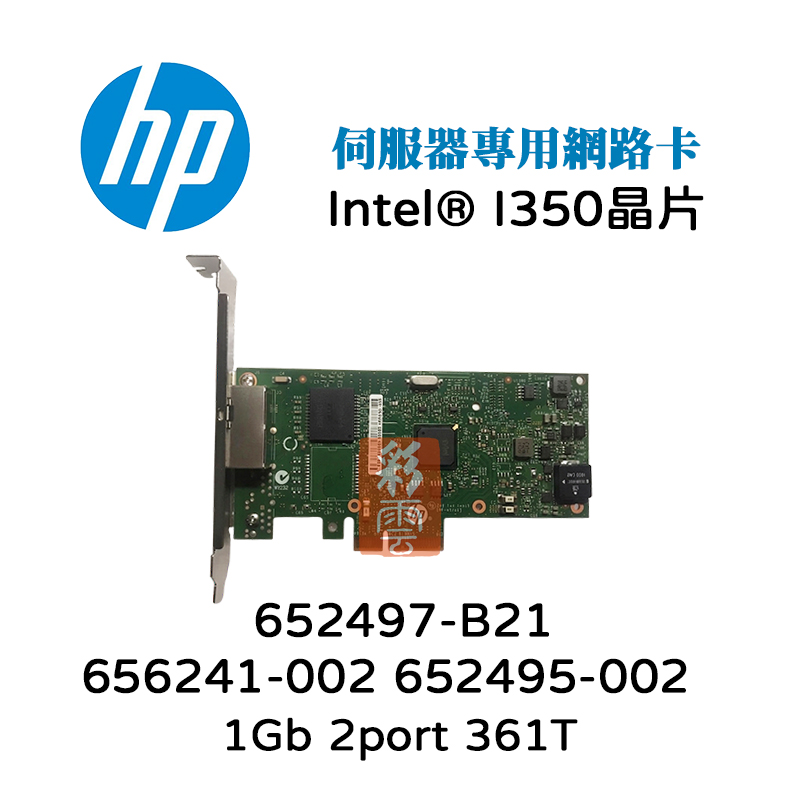

HP Ethernet 1Gb 2-Port 361T Adapter
Part Number(s)
Manufacturer Part# 652497-B21
Spare Part# 656241-001
Note:
Please confirm Low Profile or Full Height Bracket
In comments box at checkout.
Overview:
The HP 361T offers two high-performing 1GbE PCIe Gen 2.1 connections in a low cost –
low power – halogen-free design. Based on the new fully integrated
(bridgeless) Intel® Ethernet I350 Controller – it introduces new levels
of performance and power management technologies for HP Proliant Gen8
DL/ML/SL servers and select G7 servers. It can be used with a full
height or low profile bracket – and can operate at three different data
rates (10/100/1000 Mbps). The HP 361T is positioned as the follow-on to
the HP NC360T.
Specifications:
CategoryHP Networking
Sub-CategoryEthernet Adapter
Generation1GB 2-Port
Part Number652497-B21
Products ID461049
ManufacturerHP
Device TypeNetwork Adapter
Form FactorPlug-in Card
Interface TypePCI Express 2.0 x4
Network ProcessorIntel I350 Chipset
Cable ConnectorTwo Ports RJ-45
Cabling TypeEthernet 1000Base-T 100Base-TX 10Base-T
Data Transfer Rate1GB/s
Data Link ProtocolEhternet Fast Ethernet Gigabit Ethernet
WiringCategory 5 (or better) Twisted Pair
DistanceUp to 328 feet (100m)
652497-B21 Compatible Servers and Storage Arrays:
ProLiant DL Series: DL165 G7 DL580 G7 DL585 G7 DL980 G7 DL160 G8 G9 (Gen8 Gen9)
DL320e G8 G9 (Gen8 Gen9) DL360 G10 (Gen10) DL360e G8 G9 (Gen8 Gen9)
DL360p G8 G9 (Gen8 Gen9) DL380 G10 (Gen10) DL380e G8 G9 (Gen8 Gen9)
DL380p G8 G9 (Gen8 Gen9) DL385 G10 (Gen10) DL385p G8 G9 (Gen8 Gen9)
DL560 G8 G9 (Gen8 Gen9) DL560 G10 (Gen10) DL580 G10 (Gen10)
Proliant ML Series: ML110 G10 (Gen10) ML310e G8 G9 (Gen8 Gen9) ML350 G10 (Gen10)
ML350e G8 G9 (Gen8 Gen9) ML350p G8 G9 (Gen8 Gen9)
Proliant SL Series: SL230s G8 G9 (Gen8 Gen9) SL250s G8 G9 (Gen8 Gen9) SL270s G8 G9 (Gen8 Gen9)
