Description:
Dell 900GB 2.5-inch SFF SAS 6Gb/s 10K RPM
512n Dual Port (DP) Enterprise (ENT) Hot-Plug Hard Drive

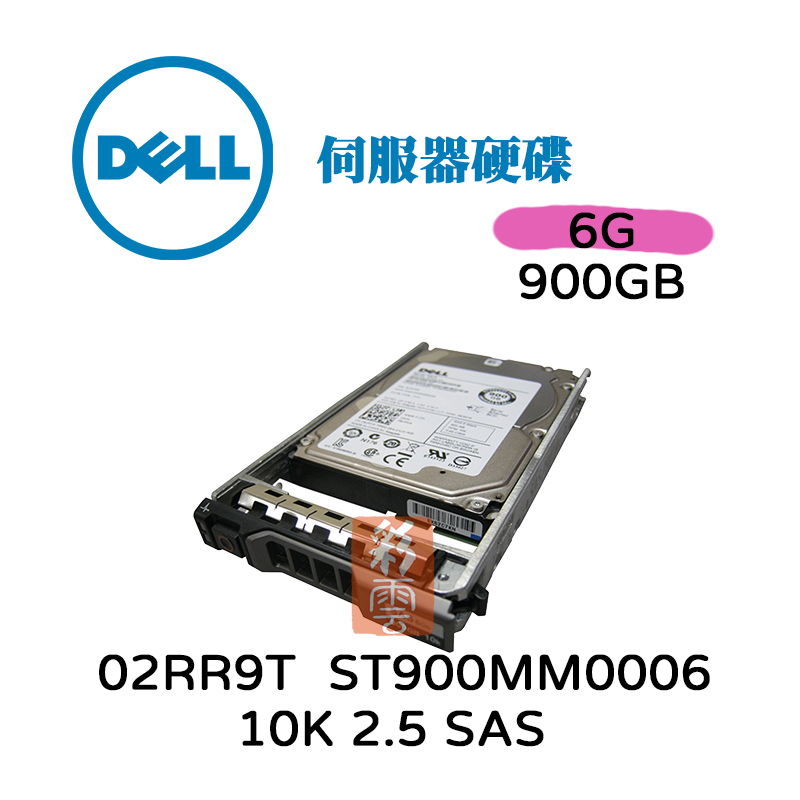

In Dell G176J 2.5-inch SFF Hot-Plug Hard Drive Tray (as pictured)
Genuine Dell serial number and firmware
Genuine Dell Certified Enterprise Class Hard Drive
Part Number(s)
Dell Part# 02RR9T
Seagate Model# ST900MM006
Seagate Assembly Part# 9WH066-150
Overview:
This 2.5 SFF SAS 10K drive offers the advanced SAS 2.0 interface and operates at 6-Gb/s
transfer rates. SAS 2.0 provides the next generation of signal and data
integrity features making SAS ideally suited for use in high-end
network storage applications. The SAS 2.0 feature set and 6-Gb/s
transfer rate supports larger topologies by connecting more expanders
host bus adapters and RAID controllers within or across more storage
arrays – by communicating over longer distances with high signal
integrity and by moving data two times faster thereby doubling data
throughput. This powerful 2.5-inch drives advantages translate into
greater overall value to IT organizations and administrators who want to
optimize their data center performance efficiency.
Specifications:
CategoryDell HardDrive
Sub-Category10K
GenerationSAS
Part Number02RR9T
Products ID469581
Capacity900GB
InterfaceSerial Attached SCSI (SAS 2)
EnclosureInternal
Drive Dimensions2.5 inches x 1/3H (SFF)
Spindle Speed10000RPM
External Data Transfer Rate600MB/s
Seek Time4.5ms
HotSwapYes
ManufacturerDell
Pre-Failure WarrantyYes
Hot Swap TrayIncluded/Attached
This Dell Part# 02RR9T is compatible with these Dell Servers and Storage Arrays:
Dell PowerEdge T-Series: T20 T110 (Gen II) T310 T320 T330 T410 T420 T430 T440 T610
Dell PowerEdge T-Series: T620 T630 T640 T710 Servers.
Dell PowerEdge R-Series: R210 (Gen I, II) R220 R230 R310 R320 R330 R410 R415 R420 R430 R510 R515 R530XD Servers.
Dell PowerEdge R-Series: R610 R620 R630 R710 R715 R720 R720XD R730 R730XD R805 R810 R815 R820 R830 Servers.
Dell PowerEdge R-Series: R900 R905 R910 R920 R930 Servers.
Dell PowerEdge C-Series: C1100 C2100 C6100 C6220 Servers.
Dell PowerEdge M-Series: M420 M510 M520 M600 M605 M610 M610x M620 M630 M710 M710XD Servers.
Dell PowerEdge M-Series: M805 M820 M830 M905 M910 M915 Servers.
Dell PowerVault M-Series: M1000e MD1120 MD1200 MD1220 MD3200 MD3220 MD3220i Arrays
Dell PowerVault M-Series: MD3400 MD3420 MD3420i MD3460 MD3600 MD3620 MD3620i MD3820i MD3860i Arrays
