Description:

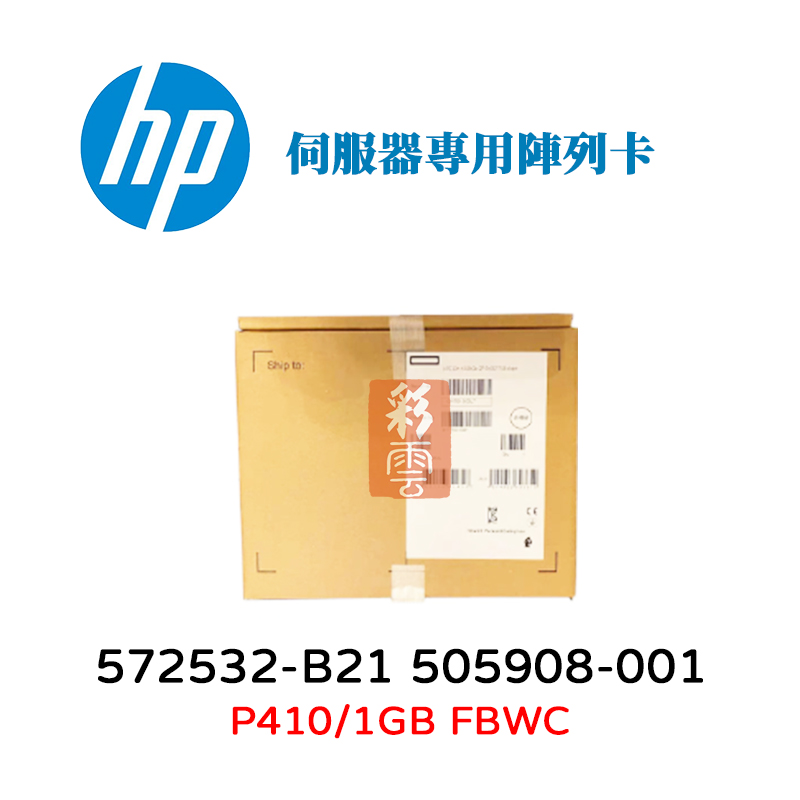

HP Smart Array P410/1G FBWC 2-ports Int
PCIe x8 SAS Controller w/Battery (Flash Back Cache
Part Number(s)
Option Part# 572532-B21
Overview:
The HP Smart Array P410 is HP s PCI Express 2.0 (PCIe) Serial Attached SCSI (SAS) RAID controller.
The low profile half height card has 8 ports and utilizes DDR2-800 memory.
The P410 is ideal for RAID 0/1 1 0 5 0 and can be upgraded with the
512MB battery-backed write cache (BBWC) module and Smart Array Advanced
via license key for RAID 6 & 6 0.
Specifications:
CategoryProliant Controller
Sub-CategorySmart Array
GenerationP410/1G
Part Number572532-B21
Products ID458009
ManufacturerHP
Product TypeStorage Controller
Host InterfacePCI Express 2.0 x 8
Controller Interface Type2 x 32-pin SFF-8484 SAS 300
Data Transfer Rate300MB/s
Buffer Size256MB
RAID Level0 1 5 10 50 1+0 5+0
Drive Support12
Memory1GB DDR2 SDRAM
Form FactorLow-Profile Plug-in Card
572532-B21 Compatible Servers and Storage Arrays:
HP Proliant DL160 G6 DL165 G7 DL165 G7 Base DL165 G7 Entry DL165 G7
Performance DL180 G6 DL320 G6 DL320 G6 Entry DL320 G6 High Efficiency
DL320 G6 Performance DL370 G6 Base DL370 G6 High Performance DL380 G7
DL380 G7 Base DL380 G7 Entry DL380 G7 Performance DL385 G7 DL385 G7 Base
DL385 G7 Entry DL385 G7 HE DL385 G7 Performance DL580 G7 DL580 G7 Base
DL580 G7 High Performance DL585 G7 DL585 G7 Base DL585 G7 Performance
ML110 G7 ML110 G7 Base ML110 G7 Entry ML110 G7 Performance ML150 G6
ML330 G6 ML350 G6 ML350 G6 Base ML350 G6 Performance SL165s G7 SL165z G7
