Description:
HP Smart Array E208i-a SR G10
8 Internal Lanes/No Cache
12Gb/s SAS Modular LH Controller
Note:
This controller does not occupy a PCIe expansion slot.
This kit includes the E208i-a LH controller which has a low-profile heatsink (LH). LH is required in certain servers.
When GPUs are used in the HP ProLiant DL360 Gen10 the HP Smart Array
E208i-a SR Gen10 LH Controller (869079-B21) should be used in place of
the HP Smart Array E208i-a SR Gen10 Controller (804326-B21).
Part Number(s)

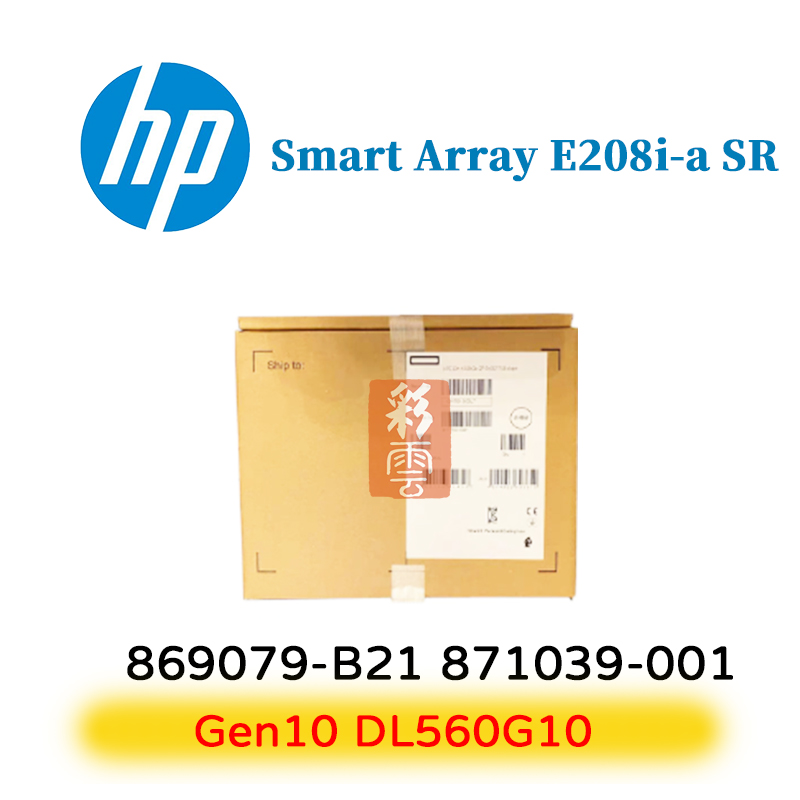

Option Part# 869079-B21 (Low profile heatsink)*本款出貨
Spare Part# 871039-001 (Low profile heatsink)*本款出貨
Option Part# 804326-B21 (NOT low profile heatsink)
Spare Part# 836259-001 (NOT low profile heatsink)
Overview:
The HP Smart Array E208i-a SR Gen10 Controller – supporting 12Gb/s SAS and PCIe 3.0 –
is an ideal cost-effective solution for RAID 0 – 1 – 5 – and 10 and
Software Defined Storage solutions. This controller operates in Mixed
Mode which combines RAID and HBA operations simultaneously. It has eight
internal SAS lanes – allowing connection to SAS or SATA drives – and
offers encryption for data-at-rest on any drive with HP Smart Array SR
Secure Encryption. This type-a flexible/modular controller occupies a
dedicated storage slot without occupying a PCIe expansion slot and
provides enterprise-class reliability – security and efficiency needed
to address your evolving data storage needs.
Specifications:
CategoryProliant Controller
Sub-CategorySmart Array
GenerationE208i-a
Part Number869079-B21
Products ID490897
ManufacturerHPE
Product TypeStorage Controller (RAID)
InterfacePCI Express 3.0 x8 Link
Connector Type8 Internal SAS lanes
Form FactorType-a Modular
Ports8 SAS lanes across 2 x4 Internal Mini
CacheNo Cache
RAID Level0 1 5 10
869079-B21 Compatible Servers and Storage Arrays:
HP Proliant Gen 10 (G10) Series Servers
HP Proliant ML Series: ML350 (G10)
HP Proliant DL Series: DL160 (G10) DL180 (G10) DL360 (G10)
HP Proliant DL Series: DL380 (G10) DL385 (G10) DL560 (G10)
HP Proliant XL Series: XL450 (G10)
HP Proliant Gen 10 Plus (G10+) Series Servers
HP Proliant DL Series: DL20 (G10+) DL325 (G10+) DL360 (G10+) DL365 (G10+)
