Description:

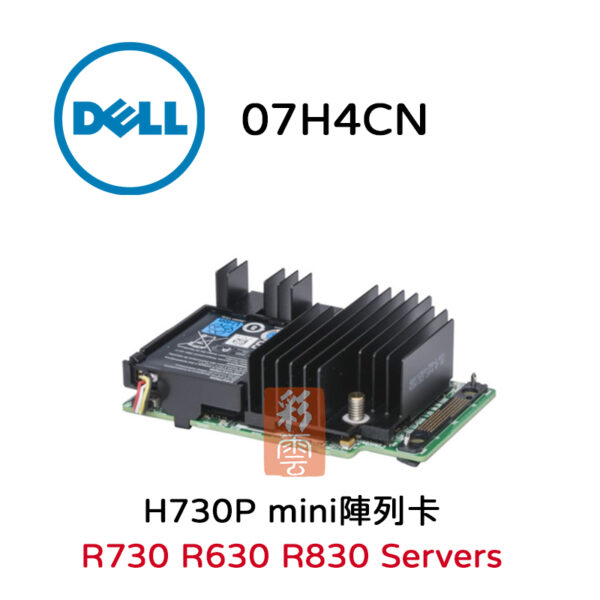

Dell PERC H730P Mini Mono Integrated
Raid 2GB Cache Controller
For Dell PowerEdge R430 R530 R530XD R630 R640 R730 R730XD Servers
Part Number(s)
Dell Part# 7H4CN
Dell Part# 07H4CN
Overview:
The PERC H730P RAID Controller offers expandable 2GB storage capacity to improve the
performance of server systems. The double module channel provides high
speed connectivity.
Specifications:
CategoryDell Controller
Sub-CategoryController
GenerationPCI-Express
Part Number07H4CN
Products ID725611
Device TypeStorage Controller (RAID) Plug-In Card
Bus TypePCIe 3.0 x8
Interface12Gb/s SAS / 6Gb/s SATA
Data Transfer Rate1.2GB/s
Buffer Size2GB
Channel Qty8
Max Storage Device Qty255
RAID LevelRAID 0 1 5 6 10 50 60
Dimensons D x H16.76cm x 6.44cm
Max Operating Temperature55°℃
Form FactorMini Mono
This Dell Part# 07H4CN is compatible with these Dell Servers and Storage Arrays:
For Dell PowerEdge R430 R530 R630 R640 R730 R730XD Servers
