Description:
HP MSA/MSA2 18TB 3.5-inch LFF SAS 12Gb/s 7.2K RPM
Midline (MDL) Hot-Plug Hard Drive

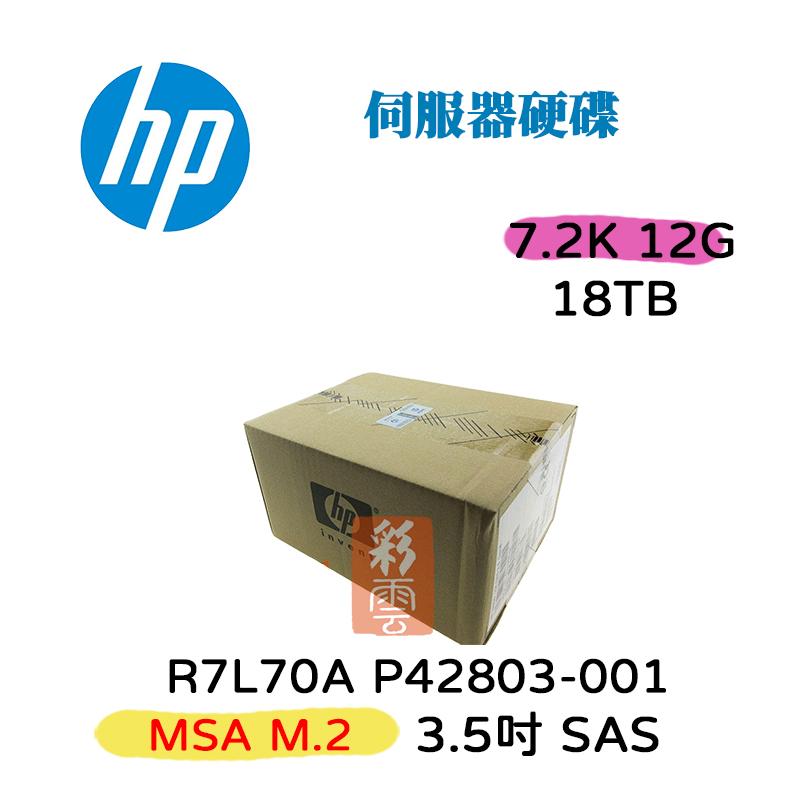

In HP MSA/MSA2 Hard Drive tray w/interposer connector (as pictured)
For HP MSA2062 SAN Storage Arrays
Genuine HP serial number and MSA/MSA2 firmware
Genuine HP manufactured Hard Drive
Part Number(s)
Option Part# R7L70A
Spare Part# P42803-001
Overview:
HP MSA2 / MSA2000 controller enclosures and large form factor expansion enclosures
accept unique HP SAS disk drive modules with different firmware and
different trays than other HP storage arrays and Proliant servers. The
disk drives have SAS interposers attached to the back which convert the
native dual port SAS interface to an SCA-40 connector. While this SCA-40
connector has the same shape as a Fibre Channel (FC) connector – the
drives are NOT utilizing the FC protocol. If you look closely at the
interposer – the circuitry is rather simplistic and no bridge /
translator chip is attached. The interposer is – more or less – acting
as a signal filter and port relocator to connect to the MSA2s
proprietary backplane.
Specifications:
CategoryStorageWorks HardDrive
Sub-Category7.2K
GenerationSAS MSA 2
Part NumberP42803-001
Products ID740257
TypeHard Drive – Hot-Plug
Capacity18TB
Interface TypeSerial Attached SCSI
Spindle Speed7200RPM
Speed12GB/s
42803-001 Compatible Servers and Storage Arrays:
Hewlett-Packard Enterprise (HPE) MSA2 2062 SAN Storage Array
